Chain Rail Guide Parameters

Application Scenarios

This rail guide component is ideally suited for use in automated production lines, packaging systems, food and beverage processing facilities, and logistics conveyor networks. Whether you’re handling light-duty materials or guiding high-speed chains under heavy loads, this strip ensures stable operation and reduces frictional wear on moving parts.

Core Advantages – Redefining Conveying Efficiency

🌪️ Abrasion & Corrosion-Resistant for Harsh Conditions

Polymer Engineering Plastic Substrate: Made of modified POM/PA66, resistant to acid-base corrosion and impact abrasion, suitable for humid, dusty, and oily industrial environments. Service life is 30% longer than traditional metal guides.
Self-Lubricating Surface Treatment: Special process coating reduces friction coefficient to 0.12-0.15, minimizing chain operation resistance and lowering equipment energy consumption by 15% year-on-year.

🚀 Precision Guidance for Operational Accuracy

±0.1mm High-Precision Molding: Achieved via CNC precision machining and mold optimization, with straightness error <0.3mm/m to ensure no chain deviation or jamming.
Noise Reduction Design: Curved guide groove structure reduces chain vibration noise to ≤65dB, 20% better than industry standards.

🔧 Flexible Adaptation & Hassle-Free Installation

Modular Design: Standard lengths of 1000mm/2000mm support quick splicing, adapting to conveyor lines of different specifications (width adjustable from 50-500mm).
Lubrication-Free Maintenance: Eliminates regular oiling of traditional metal guides, reducing labor maintenance costs by over 40%.

Product Specifications – Quality Evidenced by Data

Basic Performance

Materials: POM-C (copolymerized acetal)/ PA66+GF30 (glass fiber-reinforced nylon)
Operating Temperature: -20℃~+80℃ (special modified materials 可达 -40℃~+120℃)
Ultimate Load: Linear load ≥80kg/m (static)/ 50kg/m (dynamic)
Friction Coefficient: 0.12 (dry friction)/ 0.08 (with lubrication)

Structural Parameters

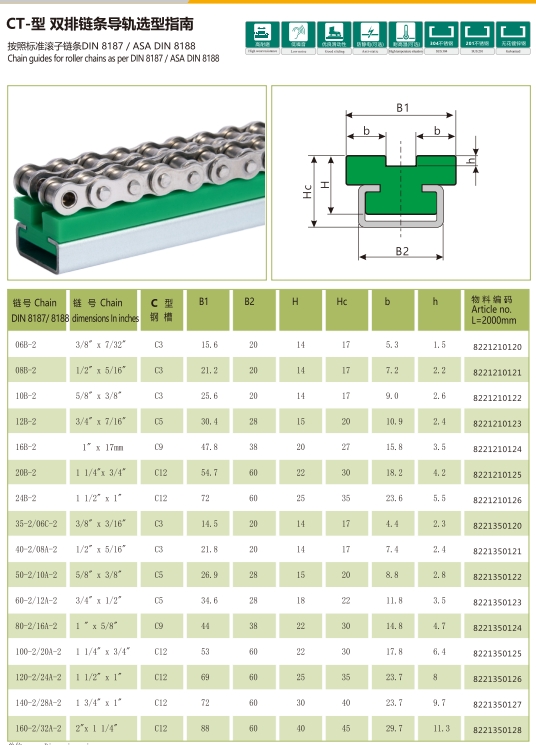

Cross-Section Shapes: L-type/ U-type/ flat type (multiple sections available, see detailed drawings)
Standard Thicknesses: 3mm/ 5mm/ 8mm/ 10mm
Installation Methods: Bolt fixing (spacing 150-300mm)/ snap-in embedding

Customization Services – Your Needs Are Our Standards

✅ Custom Sizing: Supports arbitrary length cutting (minimum 50mm) and cross-section optimization design

✅ Functional Upgrades:

Conductive rail guides (anti-static treatment, surface resistance ≤10⁹Ω)
Low-temperature resistant type (special modified materials for -40℃ environments)
Color coding (different colors for functional zoning, RAL color card customization supported)
✅ One-Stop Matching: Can be paired with chain tensioners, wear-resistant pads, installation accessories, and other full sets of components

Why Choose Us? – The Value Choice for Industrial Components

1. Full-Process Quality Control: From raw material inspection (SGS certification for each batch) to full-size factory testing (precision error <0.05mm), ensuring zero-defect delivery.
2. Fast Delivery Capability: Standard parts shipped within 72 hours, custom samples ready in 15 working days. Small batch trial orders supported (minimum order quantity ≥10 meters).
3. Technical Collaboration Support: Provides CAD 3D drawings, installation manuals, and on-site debugging guidance to facilitate efficient equipment integration.
