High-Quality Screw Parameters
| Material | UHMW-PE |
| Inspection Equipments | 3D Measure Instrument, CMM, Spectrum Analyzers, Electronic balance, Microscope, Altimeter , Calipers, Micrometer,etc. |
| Application field | Parts are used on vehicles, printing machines, food processing machines, textile machines, electronic machines, etc. |
| Manufacturing process | CNC machining Broaching, Drilling, Milling, Other Machining Services, Rapid Prototyping, Turning, |
| QC inspection | Make sure 100% inspection before the delivery |
| If you have any other questions, please click here to “send an inquiry“ | |
High-Quality Screw

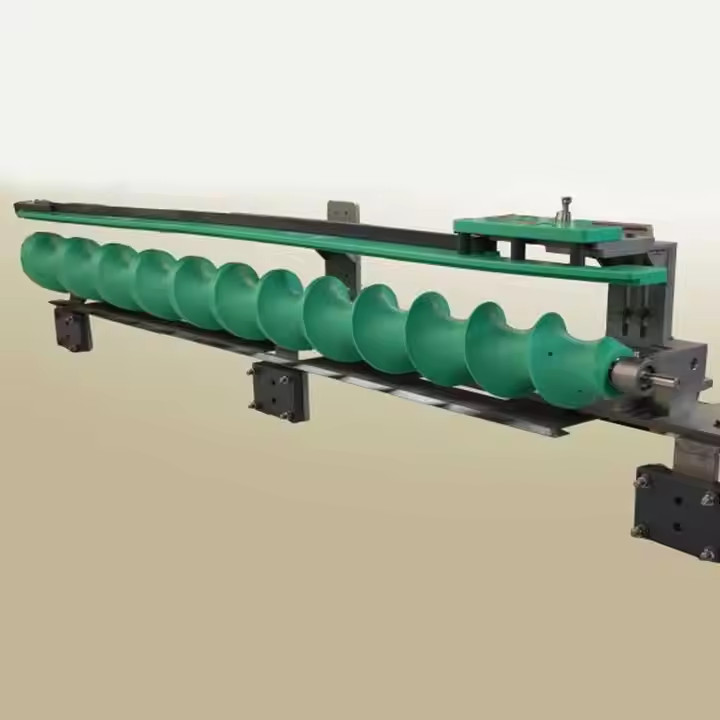

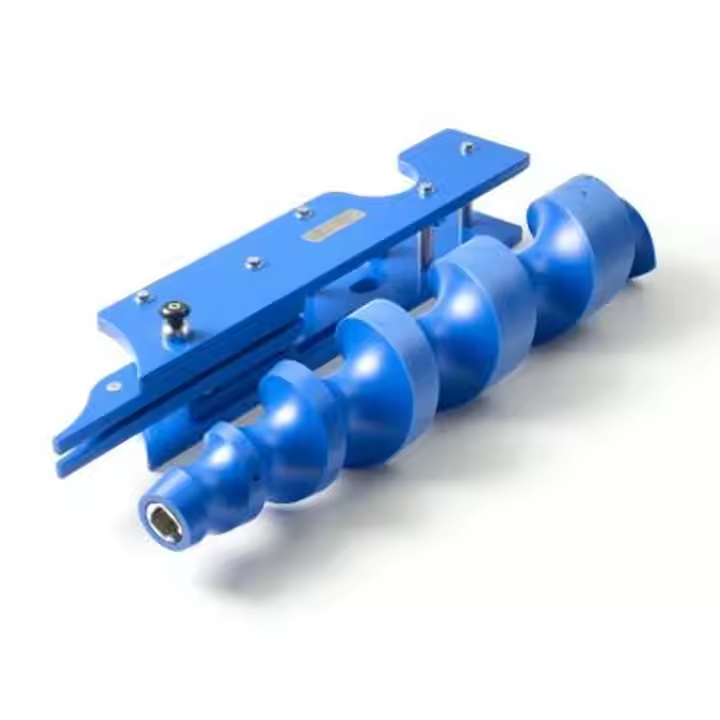

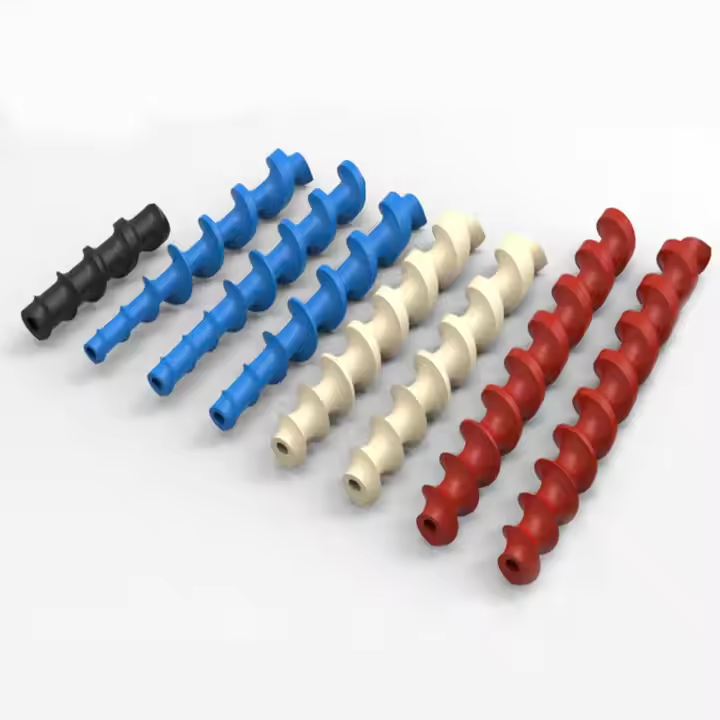

Timing screws and scrolls are designed to give the smoothest possible container handling process. They are generally manufactured in either polyethylene PE1000 – UHMW or nylon and can be colour coded if required. To enable us to quote for your requirement please provide us with drawings or samples (including the container it has been handling), along with any new containers you require to run with. For information on how to measure timing screws and scrolls please see the diagram below.
Applications

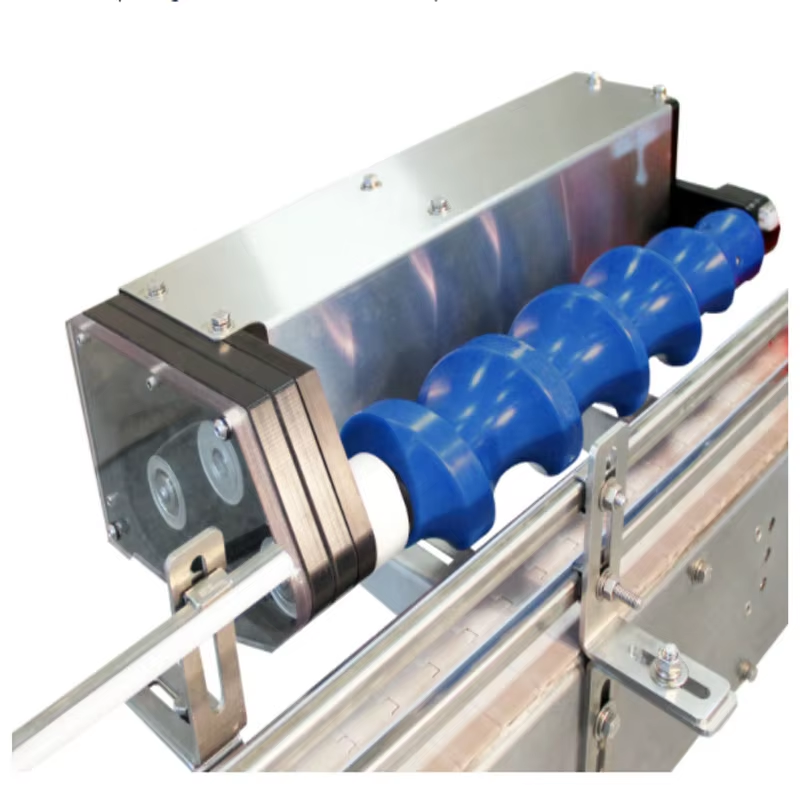

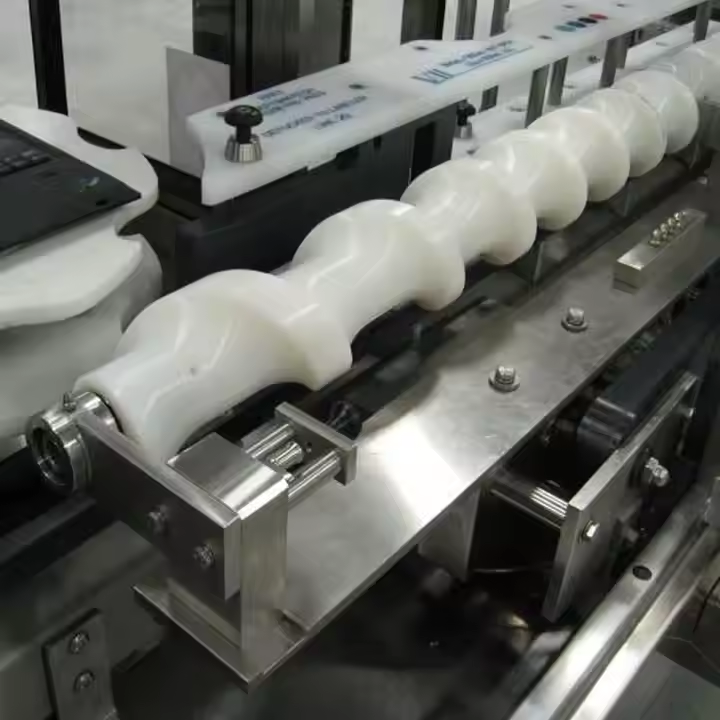

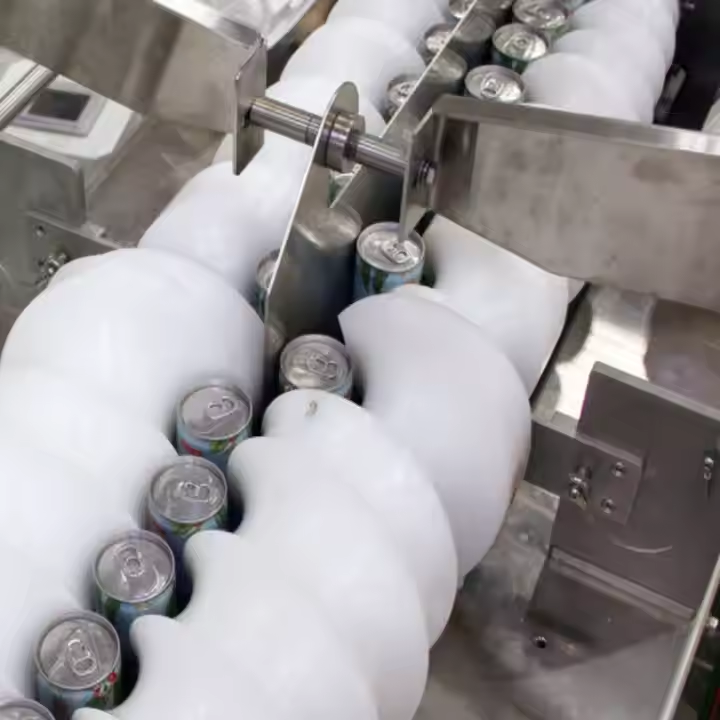

Guiding and feeding bottles through packaging and filling, capping and labelling lines.

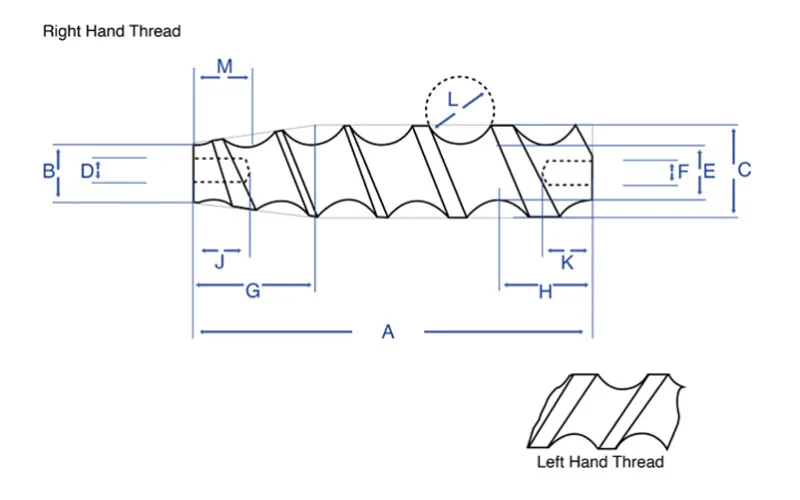

1. Overall Length
2. Infeed Diameter
3. Outside Diameter Infeed Bore
4. Infeed Bore K Outfeed Bore Depth
5. Core Diameter L Container Diameter
6. Outfeed Bore Diameter M Infeed Pitch
7. Taper Length
8. Outfeed Pitch
9. Infeed Bore Depth
10. Outfeed Bore Depth
11. Outfeed Bore Depth
